TGB™ DELIVERY: 2-4 Weeks*

*The current lead time for TGB Delivery & Installation to most areas is 2-4 weeks, although bespoke buildings, Tanalised® pressure-treatment, and delivery to remote postcode areas may take longer. At the moment, we are offering a FREE assembly service with these buildings, which will be done at the same time as delivery.

TGB Heavy Duty Apex Garage *FREE ASSEMBLY*

TGB HEAVY DUTY (STORM-BRACED) APEX GARAGE is a high quality timber building, and is DELIVERED AND ASSEMBLED in your garden! Available in several bespoke sizes, it features heavy-duty, strong, hook & band hinges, wide doors and a FREE single personnel door if required.

FREE Assembly

Glass Windows

Side Entrance Door *

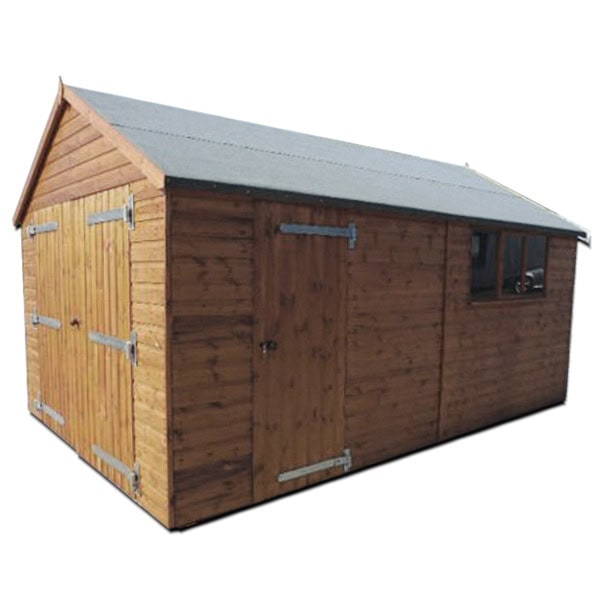

TGB Heavy Duty Apex Garage

tgb lead timeThe TGB Heavy Duty Apex Garage (Storm-Braced) is a high quality, robust, wooden, apex-roofed garage, made with longevity in mind. The TGB Heavy Duty Apex Garage is a traditionally built British garage, featuring a several fixed and opening windows, heavy-duty galvanised hook and band hinges, heavy duty roofing felt, and lots of framing for strength.

The TGB Heavy Duty Apex Garage is available in 14 sizes – 14×10 up to 30×12, all with the same level of features at an unbeatable price.

Our TGB Sheds product range is second to none, featuring hundreds of great quality buildings, accessories and optional extras, however it is difficult to show everything fully on a single web page. We are an OFFICIAL PREMIER STOCKIST of all TGB products, therefore you are welcome to visit our Edinburgh display site to see the buildings in person.



  • FREE delivery*
  • FREE professionally ASSEMBLY*
  • Preservative brown treatment
  • Toughened glass windows included (quantity varies with size)
  • Seriously strong hook & band galvanised hinges
  • Single personnel side door
  • Strong internal (storm-braced) framing
  • 16mm nominal (12mm finish) tongue & groove shiplap cladding
  • High quality, slow growing Scandinavian timber
  • T&G walls and roof
  • 14x sizes from 14×10 up to 30×12
  • Bespoke options also available
  • No floor supplied



Quality Construction

The TGB Heavy Duty Apex Garage is manufactured using high quality, slow-growing, sustainable Scandinavian Pine from well managed, sustainably certified forests. All models are constructed using 16mm nominal (approx. 12mm finished) tongue and groove shiplap timber walls, along with tongue and groove roofs and floors, however this can be upgraded to a massive 22mm nominal thickness (approx. 18mm finished) if required.

Please note that NO chipboard or OSB is used in the construction of ANY TGB building.

These TGB buildings are supplied pre-treated with a Light Brown, Eco-Friendly preservative basecoat. Strong, smoothed, rounded and planed framing has been used internally, which is doubled at the corners for extra strength. Heavy duty 40kg mineral roofing felt is supplied to keep the roof watertight.



TGB Heavy Duty Apex Garage are supplied pre-treated with a quality brown, non-toxic preservative base coat. This ensures that your garden building is ready to accept any preservative colour of your choice.

Alternatively we can supply them made from long-lasting Tanalised pressure-treated timber with a 15-year anti-rot warranty, or you can have your building factory-painted in a choice of 12x popular colours (maximum 2x colours per building). These look great, and don’t require any additional painting immediately… please contact us for details. Please remember that the colours shown below will look slightly different on your device, and from batch to batch.

Brown PreservativeTanalised Pressure-treated PreservativePaint Colour OptionsPaint Colour Options 2024


Doors, Locking System & Windows

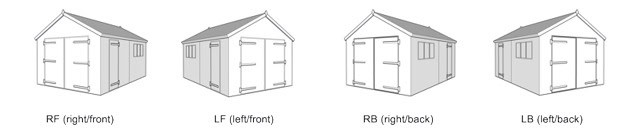

Heavy duty double doors, 2135mm wide, fully-framed and braced, are fitted as standard, along with an additional side door (762mm wide). Both are supplied complete with heavy-duty, hook & band galvanised hinges, and internal locks with 2x keys as standard. This building features joinery made windows featuring a combination of fixed and opening panes. The single door can be positioned anywhere around the building, however this must be decided at the time of order. Please choose from the door positions shown below… alternatively you can have it without a single door if you prefer.

tgb garage side door position 600 1

Please Note: The side door will have it’s hinges fitted on the right side of the door unless stated otherwise.


Professional Assembly Included

We will assemble your TGB heavy duty apex garage at NO ADDITIONAL CHARGE although some geographical limitations apply. Our PROFESSIONAL ASSEMBLY SERVICE covers approx. 90% of the UK mainland population, and requires non-restrictive access and a suitable base/site.

Look out for the FREE INSTALLATION logo:


Please note: we don’t include a fixing-down service as part of the assembly, however we do recommend taking the concrete anchor bolts (optional) to do this yourself, as any open structure can be moved (or possibly damaged) by severe winds.


DIY Assembly Video

Assembling the TGB Heavy Duty Apex Garage yourself can be very satisfying and it has several advantages: you probably won’t have to wait as long for delivery, you can assemble it on a day suitable to you, you can pre-treat the panels beforehand allowing the best possible protection for your building.

TGB Sheds, Playhouses and Summerhouses come with all the fixings and fastenings you need, but to make things even easier, here is an installation video that you can follow showing the assembly of a typical TGB building.




Optional Extras

The TGB Heavy Duty Apex Garage is supplied as a full kit, complete with all necessary fixings, fastenings, glazing and roofing materials. Optional extras include professional assembly, framing and wall thickness upgrades, double doors, opening windows, heavy flooring, verandahs, log-lap cladding, toughened glass etc. The building can also be made to a bespoke size or configuration… please call for details.



Please contact us prior to purchase if you have any queries regarding the dimensions, or if you require exact sizes. Roof overhangs will extend beyond the Body Size shown below (all dimensions are finished sizes).

Model Framing Body Size (mm) Height (mm) Double Door (mm) Single Door (mm)
TGB Heavy Duty Apex Garage (mm) Length Width Eaves Ridge Height Width Height Width
14×10 TGBGARA1410 44×44 4267 3048 1895 2595 1880 2135 1775 762
16×10 TGBGARA1610 44×44 4877 3048 1895 2595 1880 2135 1775 762
18×10 TGBGARA1810 44×44 5486 3048 1895 2595 1880 2135 1775 762
20×10 TGBGARA2010 44×44 6096 3048 1895 2595 1880 2135 1775 762
22×10 TGBGARA2210 44×44 6706 3048 1895 2595 1880 2135 1775 762
24×10 TGBGARA2410 44×44 7315 3048 1895 2595 1880 2135 1775 762
30×10 TGBGARA3010 44×44 9144 3658 1895 2595 1880 2135 1775 762
14×12 TGBGARA1412 44×44 4267 3658 1895 2690 1880 2135 1775 762
16×12 TGBGARA1612 44×44 4877 3658 1895 2690 1880 2135 1775 762
18×12 TGBGARA1812 44×44 5486 3658 1895 2690 1880 2135 1775 762
20×12 TGBGARA2012 44×44 6096 3658 1895 2690 1880 2135 1775 762
22×12 TGBGARA2212 44×44 6706 3658 1895 2690 1880 2135 1775 762
24×12 TGBGARA2412 44×44 7315 3658 1895 2690 1880 2135 1775 762
30×12 TGBGARA3012 44×44 9144 3658 1895 2690 1880 2135 1775 762

Please contact us prior to purchase if you have any queries regarding the dimensions. Sizes shown above are finished sizes (not nominal), however you should note that the roof will extend beyond the Body Size shown above.

Information shown above has been supplied by the manufacturer, and is as accurate as possible (errors and omissions excepted), however it is intended only as a guide. This high quality building has an expected lifespan well in excess of 15-years.

We recommend that you install the building on a solid, free-draining base, with at least 60cm free space all around for maintenance and to avoid splashback. You should treat all sections with a high quality, spirit-based preservative prior to assembly, and subsequently every year in accordance with the manufacturers instructions.

Please ensure that regular general maintenance is carried out on all moving parts, and that the roofing felt is regularly inspected, and replaced if required.
