TGB™ DELIVERY: 3-5 Weeks*

*The current lead time for TGB Delivery & Installation to most areas is 3-5 weeks, although bespoke buildings, Tanalised® pressure-treatment, and delivery to remote postcode areas may take longer. At the moment, we are offering a FREE assembly service with these buildings, which will be done at the same time as delivery.

TGB Groundsman Apex Shed *FREE ASSEMBLY*


SKU: TGBGMANAP
TGB Groundsman (Storm-Braced) Apex Shed with FREE Double-Door, is ULTRA-STRONG, and for most areas we can supply it FULLY FITTED*. This shed is available in several sizes, however all are fitted with very heavy 75x50mm framing.

Tanalised Timber Base Kit
8x6 Base (+£179.00)
Tanalised Timber Base Kit
10x6 Base (+£229.00)
Tanalised Timber Base Kit
12x6 Base (+£259.00)
Tanalised Timber Base Kit
8x8 (+£239.00)
Tanalised Timber Base Kit
10x8 (+£259.00)
Tanalised Timber Base Kit
12x8 (+£279.00)
Tanalised Timber Base Kit
8x10 Base (+£259.00)
Tanalised Timber Base Kit
10x10 (+£339.00)
Tanalised Timber Base Kit
12x10 (+£359.00)

Description

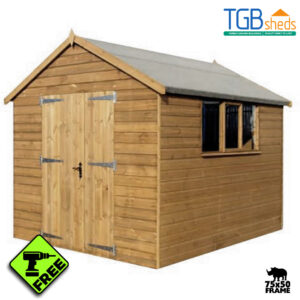

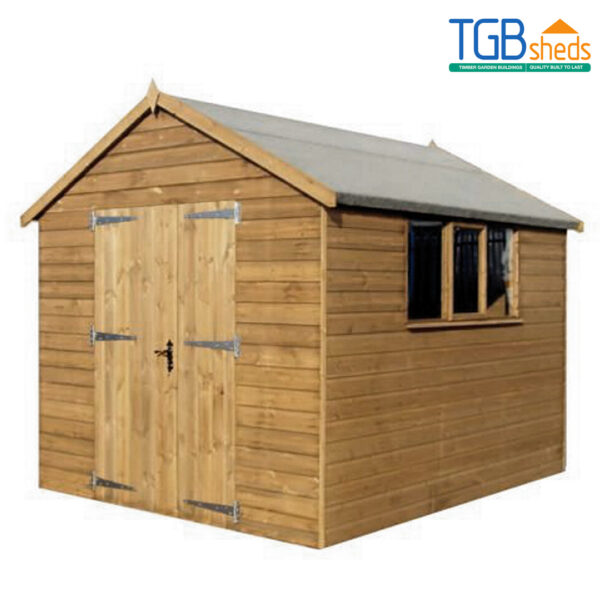

TGB Groundsman Apex Shed (Storm Braced)

tgb lead timeThe TGB Groundsman Apex Shed (Storm Braced) is an immensely strong garden shed from one of the UK’s best manufacturers. It’s a traditionally built British garden shed, featuring double-doors, high walls, diagonal wind bracings, ultra-heavy 75x50mm framing and this apex model also has ultra-heavy roof trusses.

The TGB Groundsman Apex shed is manufactured using Scandinavian Redwood Pine from well managed sustainable forests, and is available in 9 sizes – 8×6 up to 12×10.

TGB Groundsman Apex Sheds are constructed using 16mm nominal (approx. 12mm finished) tongue and groove shiplap timber walls, along with tongue and groove roofs and floors, however this can be upgraded to a massive 22mm nominal thickness (approx. 18mm finished) if required. Please note that NO chipboard or OSB is used in the construction of ANY TGB building.

Our range of TGB buildings are available pre-treated in a Honey Brown preservative at no extra charge. You can choose from any one of 5 door positions at no additional cost. An optional timber workbench is available with this building.
Our TGB Sheds product range is second to none, featuring hundreds of great quality buildings, accessories and optional extras, however it is difficult to show everything fully on a single web page. We are an OFFICIAL PREMIER STOCKIST of all TGB products, therefore you are welcome to visit our Edinburgh display site to see the buildings in person.




Features

  • FREE delivery*
  • Professionally INSTALLED IN YOUR GARDEN*
  • Ultra-heavy roof trusses
  • Optional timber workbench
  • FREE preservative treatment
  • Diagonal (storm-braced) 75x50mm framing
  • Heavy-duty double-door (boarded both sides)
  • Heavy duty galvanised door hinges
  • Mortice lock c/w keys and antique lever handles
  • High walls and tall internal heights
  • 5 different door positions (see below)
  • Heavy 40kg mineral roofing felt
  • Brown finish
  • 16mm nominal (12mm finish) tongue & groove shiplap cladding
  • High quality, slow growing Scandinavian timber
  • T&G floor and roof
  • 90x sizes from 8×6 up to 12×10
  • Bespoke options available






Quality Construction

The TGB Groundsman Apex Shed is made using EXTREMELY STRONG 75x50mm (nominal) framing. The entire building is manufactured using high quality, slow-growing, sustainable Scandinavian Pine from well managed, sustainably certified forests.

All Groundsman Sheds are constructed using 16mm nominal (approx. 12mm finished) tongue and groove shiplap timber walls, along with tongue and groove roofs and floors, however this can be upgraded to a massive 22mm nominal thickness (approx. 18mm finished) if required.

Please note that NO chipboard or OSB is used in the construction of ANY TGB building.

These TGB Groundsman Apex Sheds are supplied pre-treated with an Eco-Friendly Light Brown preservative basecoat. Ultra-strong 75x50mm nominal (70x44mm finished) smoothed, rounded and planed framing has been used internally, which is doubled at the corners for extra strength. Mineral roofing felt is supplied to keep the roof watertight.

TGB%20Bentley%20Hinge smallTGB%20Bentley%20Framing smalltruss heavy duty

Our TGB Groundsman Apex Storm-Braced sheds are very strong, and all have diagonal internal bracing on the walls to help the building withstand the effects of storm-force winds. Unfortunately mother nature can be very cruel at times, therefore we aren’t able to guarantee any shed against extreme weather conditions, however these buildings will definitely last much longer than standard models.




Preservative

TGB Groundsman Apex Sheds are supplied pre-treated with a quality brown, non-toxic preservative base coat. This ensures that your garden building is ready to accept any preservative colour of your choice.

Alternatively we can supply them made from long-lasting Tanalised pressure-treated timber with a 15-year anti-rot warranty, or you can have your building factory-painted in a choice of 12x popular colours (maximum 2x colours per building). These look great, and don’t require any additional painting immediately… please contact us for details.

Please remember that the colours shown below will look slightly different on your device, and from batch to batch.

Brown PreservativeTanalised Pressure-treated PreservativePaint Colour OptionsPaint Colour Options 2024




Doors, Locking System & Windows

The TGB Groundsman Apex Shed has a double door 1220mm (4ft) wide door is supplied complete with galvanised hinges,  a mortice lock and 2x keys. Sheds up to 10ft in length will have up to 3x (2x fixed + 1x opening) glass windows as standard, however 12ft long sheds will have up to 6x windows (4x fixed + 2x opening).

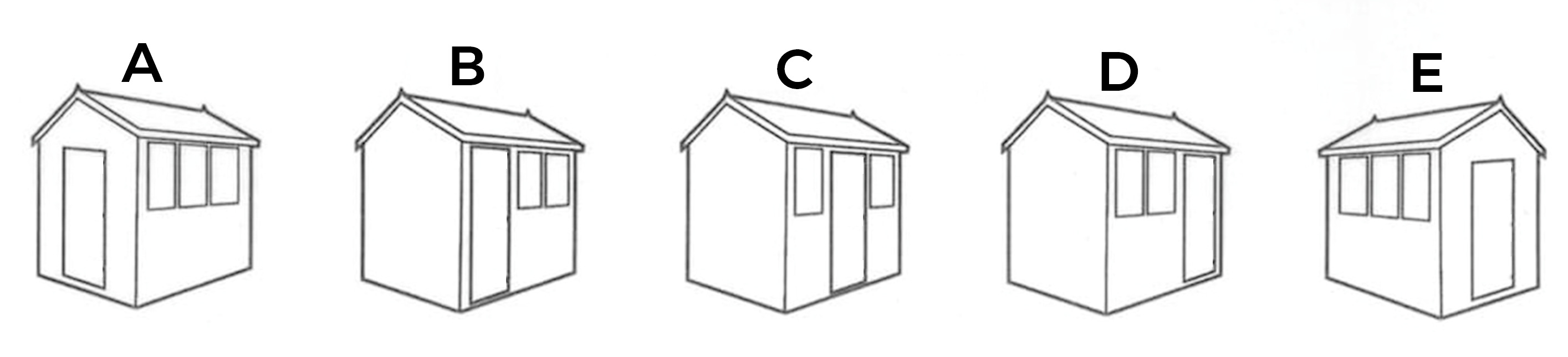

apex door position 2






Professional Assembly Included

We will install your TGB Groundsman Apex Shed at NO ADDITIONAL CHARGE although some geographical limitations apply. Our PROFESSIONAL ASSEMBLY SERVICE covers approx. 90% of the UK mainland population, and requires non-restrictive access and a suitable base/site.

Look out for the FREE INSTALLATION logo:

A1 Sheds FREE INSTALLATION Logo




DIY Assembly Video

Assembling your TGB Groundsman Apex Shed yourself can be very satisfying and it has several advantages: you probably won’t have to wait as long for delivery, you can assemble it on a day suitable to you, and you can pre-treat the panels beforehand allowing the best possible protection for your building. Playhouses and Summerhouses come with all the fixings and fastenings you need, but to make things even easier, here is an installation video that you can follow showing the assembly of a typical TGB building.








Optional Extras

The TGB Groundsman Apex Shed is supplied as a full kit, complete with all necessary fixings, fastenings, glazing and roofing materials. Optional extras include professional assembly, framing and wall thickness upgrades, double doors, opening windows, heavy flooring, verandas, log-lap cladding, toughened glass etc. The building can also be made to a bespoke size or configuration… please call for details. A solid timber workbench (852 x 1650 x 635mm) is available as an optional extra.




Specifications

Please contact us prior to purchase if you have any queries regarding the dimensions, or if you require exact sizes. Roof overhangs will extend beyond the Body Size shown below (all dimensions are finished sizes).

Model Framing Body Size (mm) Height (mm) Double Door (mm) Windows***
TGB Groundsman Apex Shed (mm) Length Width Eaves Ridge Height Width Fixed Opening
8×6 TGBGMANA0806 70×44 2438 1829 1864 2336 1880 1220 2 1
10×6 TGBGMANA1006 70×44 3048 1829 1864 2336 1880 1220 2 1
12×6 TGBGMANA1206 70×44 3658 1829 1864 2336 1880 1220 4 2
8×8 TGBGMANA0808 70×44 2438 2438 1864 2475 1880 1220 2 1
10×8 TGBGMANA1008 70×44 3048 2438 1864 2475 1880 1220 2 1
12×8 TGBGMANA1208 70×44 3658 2438 1864 2475 1880 1220 4 2
8×10 TGBGMANA0810 70×44 2438 3048 1864 2475 1880 1220 2 1
10×10 TGBGMANA1010 70×44 3048 3048 1864 1880 1220 2 1
12×10 TGBGMANA1210 70×44 3658 3048 1864 1880 1220 4 2

***Window quantities will vary depending on door position.

All products are delivered sectional/flat-packed to kerbside unless stated otherwise. Information shown above has been supplied by the manufacturer, and is as accurate as possible (errors and omissions excepted), however they are intended only as a guide. *The free installation service covers most of mainland Scotland, however delivery to outlying areas may be subject to an additional charge. We will contact you if you are in a chargeable area.

This TGB Groundsman Apex Shed has an expected lifespan in excess of 15-years. We recommend that you install the building on a solid, free-draining base, with at least 60cm free space all around for maintenance and to avoid splashback. You should treat all sections with a high quality, spirit-based preservative prior to assembly, and subsequently every year in accordance with the manufacturers instructions.

Please ensure that regular general maintenance is carried out on all moving parts. Roofing felt should be regularly inspected, and replaced if required.
